包装对象 ：该机主要用于包装面包、巧克力、糖果、饼干、蛋黄派、棒棒糖、月饼、雪糕、卡片、湿巾、勺子、牙刷、香皂、清洁球、水果、蔬菜、餐巾纸、书本、百洁布、餐具、一次性杯子、一次性拖鞋、输液瓶、注射器、纸盒或托盘、食品、五金零件、日用品、文具用品、医药用品、酒店用品等等各类固态、形状规则的物品。
产品名称：全自动上走纸枕式包装机
性能特点：
1、彩色触摸屏显示，PLC控制，光电自动快速跟踪。
2、袋长无需人工设定，设备运行中自动检测。
3、整机性能卓越，操作简单，高速包装。
4、整机在双变频控制的基础上添加了齿轮传动系统，使机械操作更为简单、高速、稳定，为国内目前首家第三代枕式包装机。
Machine name: Automatic Pillow Packing Machine
Usage:
This machine is mainly used for packaging bread/bakery, chocolate, sweets, biscuit, vitelline pie, lollipop, moon cake, ice cream, card, wet tissue, spoon, toothbrush, soap, scourer ball, syringe, hardware, commodity and the products with regular shape and no sticky.
Function and features:
1. Color touch screen display, PLC/computer control, automatic and fast photoelectric track.
2. The bag length need not be set, machine could detect it automatically.
3. Machine has high performance, simple operation and fast packing speed.
4. Gear system besides double frequency converter controller, which making machine simpler operation, high-speed and stable performance. It’s the first third-generation pillow type packing machine in China.
技术参数/jisTechnical parameter:
|
型号/Model |
JB-250 |
|
包装速度/Packing speed |
35-220 bags/min |
|
膜宽/Width of film |
90-250 mm |
|
制袋尺寸/Making bag size |
双低刀(Double low cutter) L 65-190, W 30-110, H 5-50 (mm) 双高刀(Double high cutter) L 90-220, W 30-110, H5-60 (mm) 单高刀(Single high cutter) L 150-330, W 30-110, H 5-60 (mm) |
|
总功率/Total power |
2.4 KW |
|
电源/Power supply |
1 Ph. AC220V, 50/60Hz |
|
机器尺寸/Machine size |
L3800×W850×H1500mm |
|
净重/Net weight |
400kg |
|
型号/Model |
JB-350 |
|
包装速度/Packing speed |
35-180 bags/min |
|
膜宽/Width of film |
90-350 mm |
|
制袋尺寸/Making bag size |
双低刀(Double low cutter) L 65-190, W 30-160, H 5-50 (mm) 双高刀(Double high cutter) L 90-220, W 30-160, H5-60 (mm) 单高刀(Single high cutter) L 150-330, W 30-160, H 5-60 (mm) |
|
总功率/Total power |
2.4 KW |
|
电源/Power supply |
1 Ph. AC220V, 50/60Hz |
|
机器尺寸/Machine size |
L4000×W950×H1500mm |
|
净重/Net weight |
500kg |
|
型号/Model |
JB-450 |
|
包装速度/Packing speed |
35-120 bags/min |
|
膜宽/Width of film |
90-450 mm |
|
制袋尺寸/Making bag size |
L150-450, W 40-200, H 10-70 (mm) |
|
总功率/Total power |
2.9 KW |
|
电源/Power supply |
1 Ph. AC220V, 50/60Hz |
|
机器尺寸/Machine size |
L4000×W1000×H1600mm |
|
净重/Net weight |
800kg |
|
型号/Model |
JB-600 |
|
包装速度/Packing speed |
35-120 bags/min |
|
膜宽/Width of film |
100-600 mm |
|
制袋尺寸/Making bag size |
L 180-500, W 50-240, H 10-100 (mm) |
|
总功率/Totalpower |
3.6 KW |
|
电源/Power supply |
1 Ph. AC220V, 50/60Hz |
|
机器尺寸/Machinesize |
L4200×W1200× H1750mm |
|
净重/Net weight |
1000kg |
如需其他产品包装机，请点击一下图片进行介绍页面：
客户可根据自己需求选配：
(以下为部分常见配套装置,如需其他功能可来电咨询 小蒋13916230431）

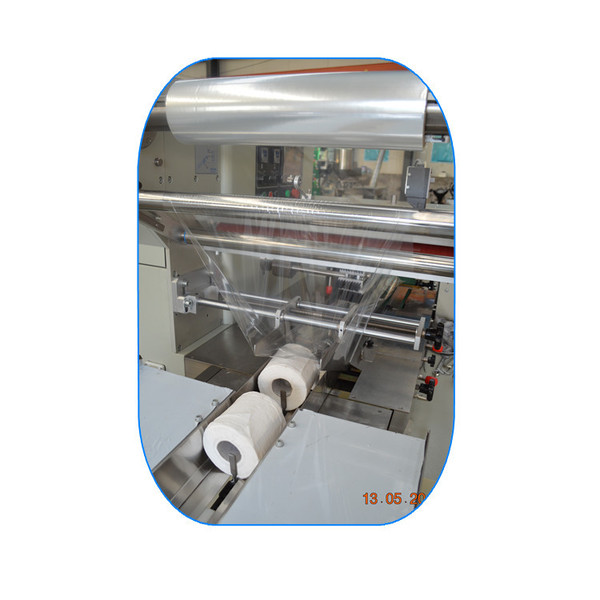

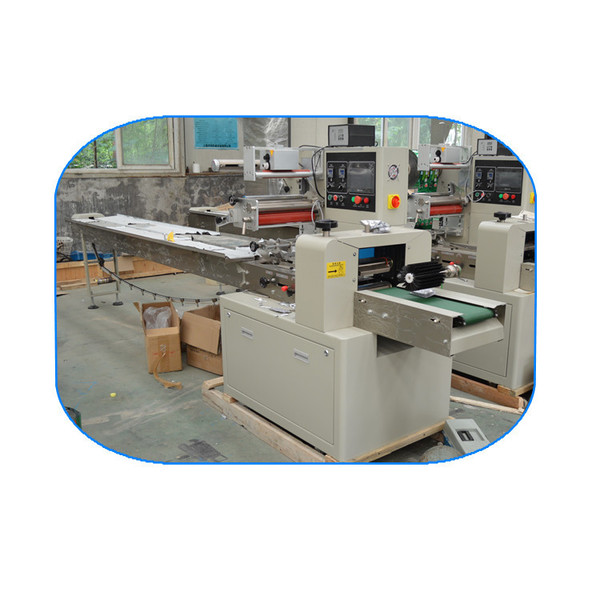

机器细节照片
