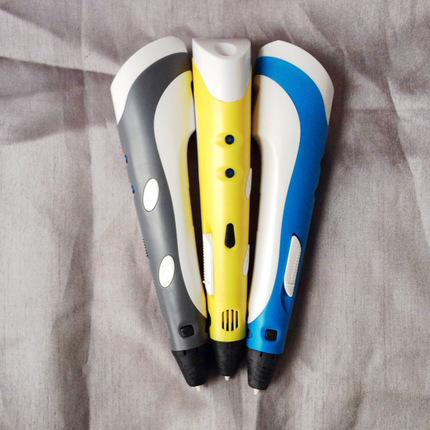

送给孩子的最佳礼物--（3D立体涂鸦画笔）
操作说明：
- 把电源适配器AC电源线插入市电插座，另一端DC插头插入绘图笔尾端之“电源输入孔”内。此时黄色LED灯亮，表明设备已通电进入待机伺服状态。
- 点按“送丝按钮”，绝色LED灯亮，表明设备已进入预热状态，大约0.5－2分钟后，当红色LED灯由红转蓝，表明预热结束，设备已可以进行正常作业。
- 把耗材插入笔尾端之“耗材导入孔”，另一手长按“送丝按钮”，随即耗材便由设备内置马达进行输送，待笔尖喷嘴端有胶料吐出即告装载成功。
- 创作。（本设备设有无极调速功能，在创作过程中可根据行笔速度来实时调整出胶量，无需双手操作）。
- 使用过程中严禁触摸喷头及发热部件。
- 当设备超过5分钟不使用，便自动进入睡眠待机状态。此时“工作指示灯”熄灭。如需再次使用，需点按“送丝按钮”进行触发。
- 需要退丝或更换耗材，请重复（2）操作，再长按“退丝按键”即可。
3D打印笔规格参数
1.出料方式：热熔挤压堆积成型 2.成型方式：三维成型 3.打印范围：无限定 4.吐丝速度：可调 5.打印耗材：ABS材料 （默认配3根3米长ABS耗材） 6.加热温度：160-250度范围内 7.设备工作电压：12V 3A 8.喷嘴直接：0.7、0.4mm 9.产品材质：塑胶外壳 10.净重：0.40kg 11.毛重：0.45kg 12.包装尺寸：长22cm宽17cm高6.3cm
13.整箱规格：1箱30支；外箱尺寸 长45.30*宽33.00cm*高53.00cm
14.整箱规格：1箱20支；外箱尺寸 长45.30*宽33.00cm*高35.80cm
1.
Product Parameters:
Extrusion : hot melt extrusion molding accumulation
Forming: three-dimensional
Print Range : indefinite
Spinning speed : Adjustable
Heating temperature in the range :160- 250 degrees Adjustable
Device operating voltage : 12V 3A
Nozzle :0.7 mm
Second, Interested groups:
Painters, product designers , hobbyists , children, students, etc.
Third, the design highlights:
1 .Prolonged use doesn't cause FLAC fatigue.
2 The product is lightweight design: a slim (easy to handle) design . Currently on the market there are several 3D stereoscopic pen, but they are not very comfortable to use i.e bulky, heavy weight, is not conducive to hold control operation. We believe that the design is the closest you can get to USER-Friendly requirements and anti fatigue. Meet the needs of children , students and adults.
3 Control: . For some of the design and operation of three-dimensional defects pen on the market , we believe our pen provides users to operate when arbitrary. Unfortunately, however, the current products on the market , have no speed control function , or have a simple switch for speed dial , or even just the speed control switch as an ornament, no practical purpose. Even if there is a file with a speed dial , you must advance or use your other hand to control . You lose the true meaning of the design. We have had practice and exploration and after much research our design includes added variable speed feature, you can freely control it according to the hand speed , allowing users in the creation of real time three-dimensional painting done most practically and with ease.
4 heating coil and a nozzle cartridge design . In the development stage, we compared the purchase of several products on the market and found these products in the strict sense, is a failure of design , in terms of appearance and use , most importantly, the future users of the product during the replacement of wearing parts and maintenance of great distress . If the heating coil burned out, or nozzle clogging , the user must own bare hands to break up the replacement of the entire product , and deadly is unreasonable due to internal design , users can often open later and then put back . It took three or four hundred or even six or seven hundred to buy back, as long as the bad results would lead to a part failure. This is intolerable by any user . We then optimized based on the improved design defect . Heating coil and the nozzle is integrated cartridge design , just push the button snaps, users can remove themselves necrosis heating coil and nozzles carry plug replacement. Without guidance or manufacturers or distributors to return to re- repair. To users, dealers, manufacturers reduce unnecessary trouble ;
5,The temperature adjustable design . Similarly, we find autopsy on the market for only several print pen : the temperature is fixed design , which gives the user tries to use without melting point of drawing supplies a great deal of distress. The real product , need more consideration for users . So we opened up the temperature regulation. Users can adjust itself depending on the supplies to reach the ideal temperature. This is very important when you are using filaments, such as wood filament or flexible filament which respond differently to temperature difference.
6. Intelligent standby- functional design.When the user operates the midway break or forget to turn off the power , the product will automatically be converted to standby mode after 5 minutes . Heaters will stop working. Users just beginning to be triggered again heating . Avoid operating the way many users forget to turn off the power after leaving the result in potential danger.
Fourth, the product packing list :
A 3D stereoscopic printing pen
A 12V 3A Power Adapter

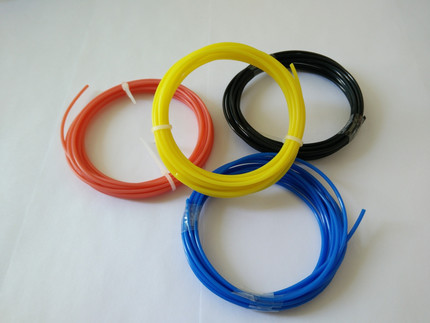

3 free filaments (ABS) 10g each
